China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, bearing rotating thrust, bearing rotating thrusts, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, bearing rotating thrust, bearing rotating thrusts, competitive price and good service up to date.

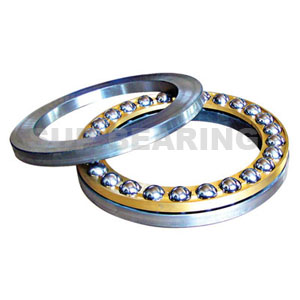

bearing rotating thrust
bearing rotating thrusts

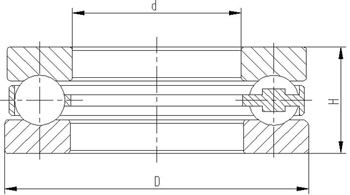

Bearing NO.  Cr  C0r  Weight
mm  mm  mm  kN  kN  kg
51100 10 24 9 9.95 15.3 0.02
51200 10 26 11 12.7 18.6 0.03
51101 12 26 9 10.4 16.6 0.022
51201 12 28 11 13.3 20.8 0.034
51102 15 28 9 10.6 18.3 0.024
51202 15 32 12 16.5 27 0.045
51103 17 30 9 11.4 21.2 0.026
51203 17 35 12 17.2 30 0.053
51104 20 35 10 15.1 29 0.039
51204 20 40 14 22.5 40.5 0.082
51105 25 42 11 18.2 39 0.06
51205 25 47 15 27.6 55 0.11
51305 25 52 18 34.5 60 0.12
51405 25 60 24 55.3 96.5 0.34
51106 30 47 11 19 43 0.069
51206 30 52 16 25.5 51 0.13
51306 30 60 21 37.7 71 0.26
51406 30 70 28 72.8 137 0.52
51107 35 52 12 19.9 51 0.08
51207 35 62 18 35.1 73.5 0.22
51307 35 68 24 49.4 96.5 0.39
51407 35 80 32 87.1 170 0.74
51108 40 60 13 26 63 0.12
51208 40 68 19 46.8 106 0.27
51308 40 78 26 61.8 122 0.53
51408 40 90 36 112 224 1.1
51109 45 65 14 26.5 69.5 0.15
51209 45 73 20 39 86.5 0.32
