China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, thrust bearing, thrust bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, thrust bearing, thrust bearings, competitive price and good service up to date.
thrust bearing

thrust bearings

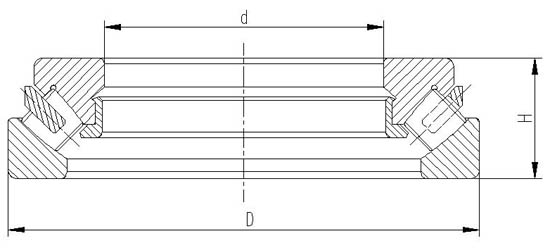

Bearings NO.  d  D  H  Cr  C0r  Weight
mm  mm  mm  kN  kN  kg
29412 E  60 130 42 390 915 2.6
29413 E  65 140 45 455 1080 3.2
29414 E  70 150 48 520 1250 3.9
29415 E  75 160 51 600 1430 4.7
29416 E  80 170 54 670 1630 5.6
29317 E  85 150 39 380 1060 2.75
29417 E  85 180 58 735 1800 6.75
29318 E  90 155 39 400 1080 2.85
29418 E  90 190 60 815 2000 7.75
29320 E  100 170 42 465 1290 3.65
29420 E  100 210 67 980 2500 10.5
29322 E  110 190 48 610 1730 5.3
29422 E  110 230 73 1180 3000 13.5
29324 E  120 210 54 765 2120 7.35
29424 E  120 250 78 1370 3450 17.5
29326 E  130 225 58 865 2500 9
29426 E  130 270 85 1560 4050 22
29328 E  140 240 60 980 2850 10.5
29428 E  140 280 85 1630 4300 23
29230 E  150 215 39 408 1600 4.3
29330 E  150 250 60 1000 2850 11
29430 E  150 300 90 1860 5100 28
29332 E  160 270 67 1180 3450 14.5
29432 E  160 320 95 2080 5600 33.5
29334 E  170 280 67 1200 3550 15
29434 E  170 340 103 2360 6550 44.5
29236 E  180 250 42 495 2040 5.8
29336 E  180 300 73 1430 4300 19.5
29436 E  180 360 109 2600 7350 52.5
29338 E  190 320 78 1630 4750 23.5
29438 E  190 380 115 2850 8000 60.5
29240 E  200 280 48 656 2650 9.3
29340 E  200 340 85 1860 5500 29.5
29440 E  200 400 122 3200 9000 72
29244 E  220 300 48 690 3000 10
29344 E  220 360 85 2000 6300 33.5
29444 E  220 420 122 3350 9650 75
29248 240 340 60 799 3450 16.5
29348 E  240 380 85 2040 6550 35.5
29448 E  240 440 122 3400 10200 80
29252 260 360 60 817 3650 18.5
29352 E  260 420 95 2550 8300 49
29452 E  260 480 132 4050 12900 105
29256 280 380 60 863 4000 19.5
29356 E  280 440 95 2550 8650 53
29456 E  280 520 145 4900 15300 135
29260 300 420 73 1070 4800 30.5
29360 E  300 480 109 3100 10600 75
29460 E  300 540 145 4310 16600 140
29264 320 440 73 1110 5100 33
29364 E  320 500 109 3350 11200 78
29464 E  320 580 155 4950 19000 175
29268 340 460 73 1130 5400 33.5
29368 340 540 122 2710 11000 105
29468 E  340 620 170 5750 22400 220
29272 360 500 85 1460 6800 52
29372 360 560 122 2760 11600 110
29472 EM  360 640 170 5350 21200 230
29276 380 520 85 1580 7650 53
29376 380 600 132 3340 14000 140
29476 EM  380 670 175 5870 24000 260
29280 400 540 85 1610 8000 55.5
29380 400 620 132 3450 14600 150
29480 EM  400 710 185 6560 26500 310
29284 420 580 95 1990 9800 75.5
29384 420 650 140 3740 16000 170
29484 EM  420 730 185 6730 27500 325
29288 440 600 95 2070 10400 78
29388 EM  440 680 145 4490 19300 180
29488 EM  440 780 206 7820 32000 410
29292 460 620 95 2070 10600 81
29392 460 710 150 4310 19000 215
29492 EM  460 800 206 7990 33500 425
29296 480 650 103 2350 11800 98
29396 480 730 150 4370 19600 220
29496 EM  480 850 224 9550 39000 550
292/500  500 670 103 2390 12500 100
293/500  500 750 150 4490 20400 235
294/500 EM  500 870 224 9370 40000 560
292/530 EM  530 710 109 3110 15300 115
293/530  530 800 160 5230 23600 270
294/530 EM  530 920 236 10500 44000 650
292/560  560 750 115 2990 16000 140
294/560 EM  560 980 250 12000 51000 810
292/600 EM  600 800 122 3740 18600 170
294/600 EM  600 1030 258 13100 56000 845
292/630 EM  630 850 132 4770 23600 210
293/630 EM  630 950 190 8450 38000 485
294/630 EM  630 1090 280 14400 62000 1040
292/670  670 900 140 4200 22800 255
294/670 EM  670 1150 290 15400 68000 1210
293/710 EM  710 1060 212 9950 45500 660
294/710 EF  710 1220 308 17600 76500 1500
292/750 EM  750 1000 150 6100 31000 325
293/750  750 1120 224 9370 45000 770
294/750 EF  750 1280 315 18700 85000 1650
292/800 EM  800 1060 155 6560 34500 380
293/800  800 1180 230 9950 49000 865
294/800 EF  800 1360 335 20200 93000 2025
292/850 EM  850 1120 160 6730 36000 425
294/850 EF  850 1440 354 23900 108000 2390
294/900 EF  900 1520 372 26700 122000 2650
292/950 EM  950 1250 180 8280 45500 600
294/950 EF  950 1600 390 28200 132000 3065
292/1060 EF  1060 1400 206 10500 58500 860
294/1060 EF  1060 1770 426 33400 156000 4280
292/1180 EF  1180 1520 206 10900 64000 950
293/1250 EF  1250 1800 330 24800 129000 2770
293/1600 EF  1600 2280 408 36800 200000 5375


bearing
