China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, angular bearing, angular bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, angular bearing, angular bearings, competitive price and good service up to date.

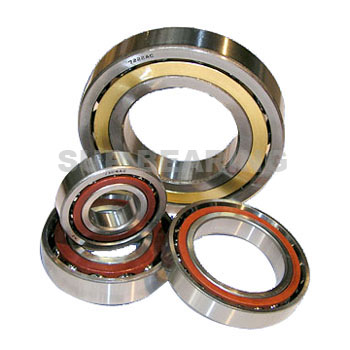

angular bearing

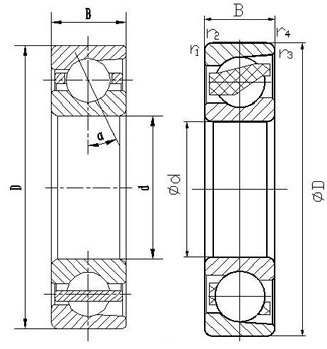

Bearing NO.  d  D  B  Cr  C0r  Weight
mm  mm  mm  kN  kN  kg
7200 BEP  10 30 9 7.02 3.35 0.03
7201 BEP  12 32 10 7.61 3.8 0.036
7301 BEP  12 37 12 10.6 5 0.063
7202 BEP  15 35 11 8.84 4.8 0.045
7302 BEP  15 42 13 13 6.7 0.081
7203 BEP  17 40 12 10.4 5.5 0.064
7303 BEP  17 47 14 15.9 8.3 0.11
7204 BEP  20 47 14 13.3 7.65 0.11
7304 BEP  20 52 15 17.4 9.5 0.14
7205 BEP  25 52 15 14.8 9.3 0.13
7305 BEP  25 62 17 24.2 14 0.23
7206 BEP  30 62 16 22.5 14.3 0.19
7306 BEP  30 72 19 32.5 19.3 0.33
7207 BEP  35 72 17 29.1 19 0.28
7307 BEP  35 80 21 39 24.5 0.45
7208 BEP  40 80 18 34.5 24 0.37
7308 BEP  40 90 23 46.2 30.5 0.61
7209 BEP  45 85 19 35.8 26 0.42
7209 BEY  45 85 19 37.7 28 0.43
7309 BEP  45 100 25 55.9 37.5 0.82
7210 BEP  50 90 20 37.7 28.5 0.47
7310 BEP  50 110 27 68.9 47.5 1.04
7211 BEP  55 100 21 46.2 36 0.62
7311 BEP  55 120 29 79.3 55 1.34
7212 BEP  60 110 22 57.2 45.5 0.78
7312 BEP  60 130 31 95.6 69.5 1.71


bearing
