China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, thrust ball bearing, thrust ball bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, thrust ball bearing, thrust ball bearings, competitive price and good service up to date.

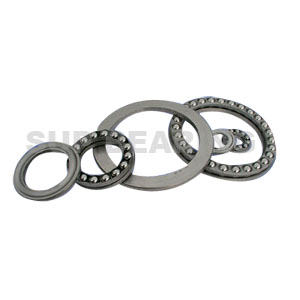

thrust ball bearing
thrust ball bearings

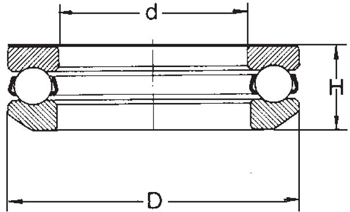

Bearing NO. d D H1 Cr C0r Weight
mm mm mm kN kN kg
53201U 12 28 13 13.3 20.8 0.045
53202U 15 32 15 16.5 27 0.063
53203U 17 35 15 17.2 30 0.071
53204U 20 40 17 22.5 40.5 0.1
53205U 25 47 19 27.6 55 0.15
53206U 30 52 20 25.5 51 0.18
53306U 30 60 25 37.7 71 0.33
53207U 35 62 22 35.1 73.5 0.28
53307U 35 68 28 49.4 96.5 0.46
53208U 40 68 23 46.8 106 0.35
53308U 40 78 31 61.8 122 0.67
53408U 40 90 42 112 224 1.35
53209U 45 73 24 39 86.5 0.39
53309U 45 85 33 76.1 153 0.83
53210U 50 78 26 49.4 116 0.47
53310U 50 95 37 88.4 190 1.2
53410U 50 110 50 159 340 2.31
53211U 55 90 30 61.8 146 0.75
53311U 55 105 42 104 224 1.68
53411U 55 120 55 178 390 3.08
53212U 60 95 31 62.4 150 0.82
53312U 60 110 42 101 224 1.71
53412U M 60 130 58 199 430 3.8
53213U 65 100 32 63.7 163 0.91
53313U 65 115 43 106 240 1.89
53214U 70 105 32 65 173 0.97
53314U 70 125 48 135 320 2.5
53414U M 70 150 69 234 550 6.5
53215U 75 110 32 67.6 183 1
53315U 75 135 52 163 390 3.2
53415U M 75 160 75 251 610 8.1
53216U 80 115 33 76.1 208 1.1
53316U 80 140 52 159 390 3.3
53416U M 80 170 78 270 670 9.4
53217U 85 125 37 97.5 275 1.5
53317U 85 150 58 190 465 4.35
53218U 90 135 42 119 325 2.1
53318U 90 155 59 195 500 4.7
53418U M 90 190 88 307 815 13
53220U 100 150 45 124 345 2.7
53320U 100 170 64 229 610 5.95
53420U M 100 210 98 371 1060 18
53222U 110 160 45 130 390 2.91
53322UM 110 190 72 276 780 9.1
53224U 120 170 46 140 440 3.2
53324U M 120 210 80 325 980 12.5
53226U 130 190 53 186 585 4.85
53228U 140 200 55 190 620 5.45
