China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, spherical ball bearing, spherical ball bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, spherical ball bearing, spherical ball bearings, competitive price and good service up to date.
spherical ball bearing
spherical ball bearings

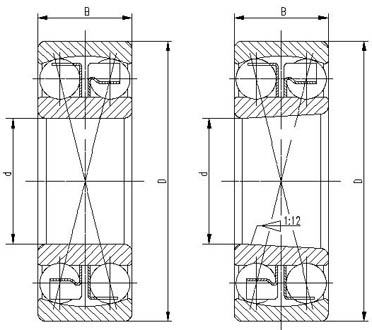

Bearing NO.  d D B C C0r Weight
mm mm mm kN mm kg
126 TN9 6 19 6 2.51 0.48 0.009
127 TN9 7 22 7 2.65 0.56 0.014
108 TN9 8 22 7 2.65 0.56 0.014
129 TN9 9 26 8 3.9 0.82 0.022
1200 ETN9 10 30 9 5.53 1.18 0.034
2200 E-2RS1TN9 10 30 14 5.53 1.18 0.048
2200 ETN9 10 30 14 8.06 1.73 0.047
1201 ETN9 12 32 10 6.24 1.43 0.04
2201 E-2RS1TN9 12 32 14 6.24 1.43 0.053
2201 ETN9 12 32 14 8.52 1.9 0.053
1301 EM 12 37 12 9.36 2.16 0.072
1301 ETN9 12 37 12 9.36 2.16 0.067
2301 12 37 17 11.7 2.7 0.095
1202 ETN9 15 35 11 7.41 1.76 0.049
2202 E-2RS1TN9 15 35 14 7.41 1.76 0.058
2202 ETN9 15 35 14 8.71 2.04 0.06
1302 ETN9 15 42 13 10.8 2.6 0.094
2302 15 42 17 11.9 2.9 0.12
2302 E-2RS1TN9 15 42 17 10.8 2.6 0.11
1203 ETN9 17 40 12 8.84 2.2 0.073
2203 E-2RS1TN9 17 40 16 8.84 2.2 0.089
2203 ETN9 17 40 16 10.6 2.55 0.088
1303 EM 17 47 14 12.7 3.4 0.13
1303 ETN9 17 47 14 12.7 3.4 0.12
2303 17 47 19 14.6 3.55 0.16
2303 E-2RS1TN9 17 47 19 12.7 3.4 0.16
2303 M 17 47 19 14.6 3.55 0.18
1204 EKTN9 20 47 14 12.7 3.4 0.12


bearing
