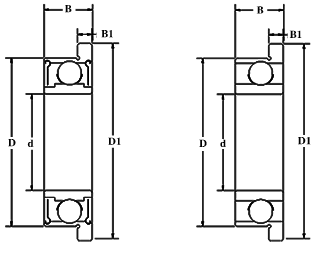

Bearing NO.	d	D	Df	B	Bf	Ball		Cr	C0r
Bearing NO.	mm	mm	mm	mm	mm	mm	No	(kgf)	(kgf)
FR0ZZ	1.191	3.967	5.156	2.38	0.787	0.6	7	10	3
FR0	1.191	3.967	5.156	1.588	0.33	0.6	7	10	3
FR1ZZ	1.397	4.762	5.944	2.779	0.787	1	6	22	6
FR1	1.397	4.762	5.944	1.984	0.584	1	6	22	6
FR1-4ZZ	1.984	6.35	7.518	3.571	0.787	1	7	26	9
FR1-4	1.984	6.35	7.518	2.38	0.584	1	7	26	9
FR133ZZ	2.38	4.762	5.944	2.38	0.787	0.8	7	17	5
FR133	2.38	4.762	5.944	1.588	0.457	0.8	7	17	5
FR1-5ZZ	2.38	7.938	9.119	3.571	0.787	1.588	6	50	15
FR1-5	2.38	7.938	9.119	2.779	0.584	1.588	6	50	15
FR144ZZ	3.175	6.35	7.518	2.779	0.787	1	7	25	8
FR144	3.175	6.35	7.518	2.38	0.584	1	7	25	8
FR2-5ZZ	3.175	7.938	9.119	3.571	0.787	1.588	6	50	15
FR2-5	3.175	7.938	9.119	2.779	0.584	1.588	6	50	15
FR2-6ZZ	3.175	9.525	10.719	3.571	0.787	1.588	7	57	20
FR2-6	3.175	9.525	10.719	2.779	0.584	1.588	7	57	20
FR2ZZ	3.175	9.525	11.176	3.967	0.762	1.588	7	57	20
FR2	3.175	9.525	11.176	3.967	0.762	1.588	7	57	20
FR155ZZ	3.967	7.938	9.119	3.175	0.914	1	10	33	13
FR155	3.967	7.938	9.119	2.779	0.584	1	10	33	13
FR156ZZ	4.762	7.938	9.119	3.175	0.914	1	10	33	13
FR156	4.762	7.938	9.119	2.779	0.584	1	10	33	13
FR166ZZ	4.762	9.525	10.719	3.175	0.787	1.588	8	63	21
FR166	4.762	9.525	10.719	3.175	0.584	1.588	8	63	21
FR3ZZ	4.762	12.7	14.351	4.978	1.067	2.381	7	115	41
FR3	4.762	12.7	14.351	4.978	1.067	2.381	7	115	41
FR168ZZ	6.35	9.525	10.719	3.175	0.914	1	11	30	15
FR168	6.35	9.525	10.719	3.175	0.584	1	11	30	15
FR188ZZ	6.35	12.7	13.894	4.762	1.143	2	8	100	40
FR188	6.35	12.7	13.894	3.175	0.584	2	8	100	40
FR4ZZ	6.35	15.875	17.526	4.978	1.607	2.381	8	135	56
FR4	6.35	15.875	17.526	4.978	1.067	2.381	8	135	56
FR1810ZZ	7.938	12.7	13.894	3.967	0.787	1.2	12	50	25
FR1810	7.938	12.7	13.894	3.967	0.787	1.2	12	50	25
FR6ZZ	9.525	22.225	24.613	7.142	1.575	3.969	7	305	123
FR6	9.525	22.225	24.613	5.558	1.575	3.969	7	305	123
FR8ZZ	12.7	28.575	31.12	7.938	1.575	4.762	8	476	215
FR8	12.7	28.575	31.12	6.35	1.575	4.762	8	476	215
