China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, ball thrust bearing, ball thrust bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, ball thrust bearing, ball thrust bearings, competitive price and good service up to date.

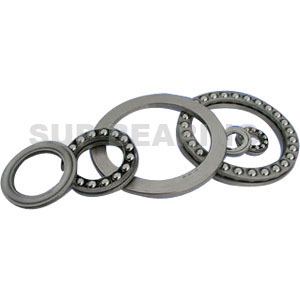

ball thrust bearing
ball thrust bearings

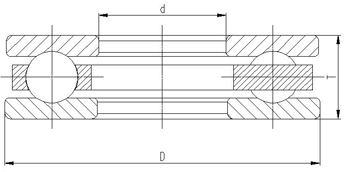

Bearing NO. d D H Cr C0r Weight
mm mm mm kN kN kg
F3-8M 3 8 3.5 0.6 0.48
F4-9M 4 9 4 0.8 0.52
F4-10M 4 10 4 0.658 0.58
F5-10M 5 10 4 0.95 0.83
F5-11M 5 11 4.5 0.988 0.88
F5-12M 5 12 4 0.988 0.88
F6-12M 6 12 4.5 1.6 1.255
F6-14M 6 14 5 1.8 1.588
F7-13M 7 13 4.5 1.422 1.255
F7-15M 7 15 5 2.2 2
F7-17M 7 17 6 2.6 2.256
F8-16M 8 16 5 2.5 3
F8-19M 8 19 7 3.452 3
F9-20M 9 20 7 3.356 2.999
F10-18M 10 18 5.5 2.23 2.721


bearing
