China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, flange bearing, flange bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, flange bearing, flange bearings, competitive price and good service up to date.
flange bearing
flange bearings

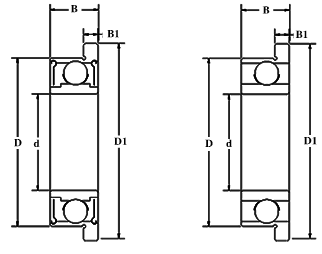

Bearing NO.　  d D Df B  Bf Ball Cr C0r
mm mm mm mm mm mm No (kgf) (kgf)
F681 1 3 3.8 1 0.3 0.5 6 7 1.8
F691 1 4 5 1.6 0.5 0.8 5 12 3.5
F682ZZ 2 5 6.1 2.3 0.6 0.8 6 15 3.5
F682 2 5 6.1 1.5 0.5 0.8 6 15 3.5
F692ZZ 2 6 7.5 3 0.8 1.2 6 31 9
F692 2 6 7.5 2.3 0.6 1.2 6 31 9
F602ZZ 2 7 8.5 3.5 0.9 1.2 7 33 11
F602 2 7 8.5 2.8 0.7 1.2 7 33 11
F683ZZ 3 7 8.1 3 0.8 1 8 27 9
F683 3 7 8.1 2 0.5 1 8 27 9
F693ZZ 3 8 9.5 4 0.9 1.588 6 48 15
F693 3 8 9.5 3 0.7 1.588 6 48 15
F603 3 9 10.5 3 0.7 1.588 6 48 15
F623ZZ 3 10 11.5 4 1 1.588 7 55 17
F623 3 10 11.5 4 1 1.588 7 55 17
F684ZZ 4 9 10.3 4 1 1.588 7 55 17
F684 4 9 10.3 2.5 0.6 1.588 7 55 17
F694ZZ 4 11 12.5 4 1 2 7 83 28
F694 4 11 12.5 4 1 2 7 83 28
F604ZZ 4 12 13.5 4 1 2 7 83 28
F604 4 12 13.5 4 1 2 7 83 28
F624ZZ 4 13 15 5 1 2.381 7 113 40
F624 4 13 15 5 1 2.381 7 113 40
F634ZZ 4 16 18 5 1 2.381 7 114 41
F634 4 16 18 5 1 2.381 7 114 41
F685ZZ 5 11 12.5 5 1 1.588 8 60 23
F685 5 11 12.5 3 0.8 1.588 8 60 23
F695ZZ 5 13 15 4 1 2 8 95 38
F695 5 13 15 4 1 2 8 95 38
F605ZZ 5 14 16 5 1 2.381 7 120 42
F605 5 14 16 5 1 2.381 7 120 42
F625ZZ 5 16 18 5 1 3.175 6 150 55
F625 5 16 18 5 1 3.175 6 150 55
F635ZZ 5 19 22 6 1.5 3.175 7 205 81
F635 5 19 22 6 1.5 3.175 7 205 81
F686ZZ 6 13 15 5 1.1 2 8 95 37
F686 6 13 15 3.5 1 2 8 95 37
F696ZZ 6 15 17 5 1.2 2.381 7 121 46
F696 6 15 17 5 1.2 2.381 7 121 46
F606ZZ 6 17 19 6 1.2 3.175 6 211 72
F606 6 17 19 6 1.2 3.175 6 211 72
F626ZZ 6 19 22 6 1.5 3.175 6 213 75
F626 6 19 22 6 1.5 3.175 6 213 75
F687ZZ 7 14 16 5 1.1 2 9 110 46
F687 7 14 16 3.5 1 2 9 110 46
F697ZZ 7 17 19 5 1.2 2.381 9 151 67
F697 7 17 19 5 1.2 2.381 9 151 67
F607ZZ 7 19 22 6 1.5 3.175 6 213 79
F607 7 19 22 6 1.5 3.175 6 213 79
F627ZZ 7 22 25 7 1.5 3.969 7 305 125
F627 7 22 25 7 1.5 3.969 7 305 125
F688ZZ 8 16 18 5 1.1 2 10 115 52
F688 8 16 18 4 1 2 10 115 52
F698ZZ 8 19 22 6 1.5 3.175 7 203 86
F698 8 19 22 6 1.5 3.175 7 203 86
F608ZZ 8 22 25 7 1.5 3.969 7 305 127
F608 8 22 25 7 1.5 3.969 7 305 127
F679ZZ 9 14 15.5 4.5 0.8 1.588 12 82 45
F679 9 14 15.5 3 0.8 1.588 12 82 45
F689ZZ 9 17 19 5 1.1 2 11 117 61
F689 9 17 19 4 1 2 11 117 61
F699ZZ 9 20 23 6 1.5 3.175 8 213 102
F699 9 20 23 6 1.5 3.175 8 213 102
F609ZZ 9 24 27 7 1.5 3.969 7 312 127
F609 9 24 27 7 1.5 3.969 7 312 127
F6700ZZ 10 15 16.5 4 0.8 1.588 11 78 37
F6700 10 15 16.5 3 0.8 1.588 11 78 37
F6800ZZ 10 19 21 5 1 2.381 10 157 77
F6800 10 19 21 5 1 2.381 10 157 77
F63800ZZ 10 19 21 7 1.5 2.381 10 157 77
F63800 10 19 21 7 1.5 2.381 10 157 77
F6900ZZ 10 22 25 6 1.5 3.175 9 246 113
F6900 10 22 25 6 1.5 3.175 9 246 113
F6701ZZ 12 18 19.5 4 0.8 1.588 13 82 47
F6701 12 18 19.5 4 0.8 1.588 13 82 47
F6801ZZ 12 21 23 5 1.1 2.381 12 172 93
F6801 12 21 23 5 1.1 2.381 12 172 93
F63801ZZ 12 21 23 7 1.5 2.381 12 172 93
F63801 12 21 23 7 1.5 2.381 12 172 93
F6901ZZ 12 24 26.5 6 1.5 3.175 10 257 126
F6901 12 24 26.5 6 1.5 3.175 10 257 126
