bronze plain bearing

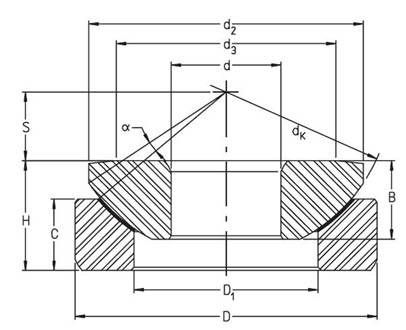

Bearing NO. d D B C ± C C0r Weight
mm mm mm mm degrees kN kN kg
GX 17 F 17 47 11.8 11.2 5 36.5 58.5 0.14
GX 20 F 20 55 14.5 13.8 5 46.5 73.5 0.25
GX 25 F 25 62 16.5 16.7 5 69.5 112 0.42
GX 30 F 30 75 19 19 5 95 153 0.61
GX 35 F 35 90 22 20.7 6 134 216 0.98
GX 40 F 40 105 27 21.5 6 173 275 1.5
GX 45 F 45 120 31 25.5 6 224 355 2.25
GX 50 F 50 130 33 30.5 6 275 440 3.15
GX 60 F 60 150 37 34 6 375 600 4.65
GX 70 F 70 160 42 36.5 5 475 750 5.4
GX 80 F 80 180 43.5 38 5 570 915 6.95
GX 100 F 100 210 51 46 5 735 1180 11
GX 120 F 120 230 53.5 50 4 880 1430 14


bearing
