China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, rolling mill bearing, rolling mill bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, rolling mill bearing, rolling mill bearings, competitive price and good service up to date.

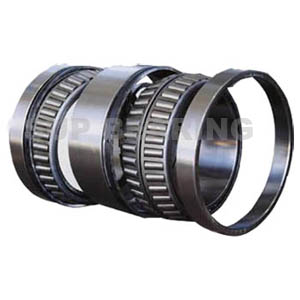

rolling mill bearings
rolling mill bearing

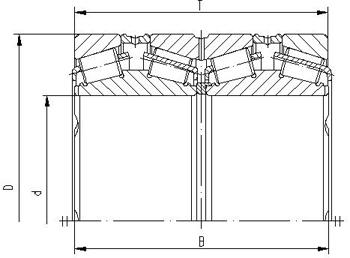

bearing NO. Cr  C0r  Weight
mm  mm  mm  mm  kN  kN  kg
BT4B 332406/HA1  120.65 174.625 139.703 141.288 737 585 11.5
BT4B 330880/HA1  127 182.562 158.75 158.75 781 1760 14
331138 A  139.7 200.025 160.338 157.162 858 2080 15.5
331138 AG  139.7 200.025 160.338 157.162 858 2080 15.5
331329 152.4 222.25 174.625 174.625 1120 2500 22.5
BT4B 329121 G/HA1VA901  152.4 244.475 187.325 182.088 1300 2160 30
330835 C  165.1 225.425 168.275 165.1 858 2200 20.5
331480 177.8 247.65 192.088 192.088 1230 3000 29
BT4-0010/HA1VA903  177.8 247.65 192.088 192.088 1020 2500 27
BT4B 328881/HA1  187.325 269.875 211.138 211.138 1650 3800 33.5
331249 190.5 266.7 188.912 187.325 1340 3250 33.5
330899 A  198.438 284.162 225.425 225.425 1340 3250 33.5
BT4B 329123 G/HA1VA901  203.2 317.5 266.7 266.7 2480 4900 76
BT4B 328065/HA1  205 320 203.5 203.5 1900 3650 54.5
331486 206.375 282.575 190.5 190.5 1300 3350 36.5
331486 G  206.375 282.575 190.5 190.5 1300 3350 36.5
BT4-0013 G/HA1VA903  206.375 282.575 190.5 190.5 1140 2500 32
BT4B 329090 G/HA1VA901  206.375 282.575 226 226 1300 3350 40
BT4B 328853 G/HA1VA902  220 295 315 315 1510 4050 55
BT4B 328348/HA1  220 320 200 200 1760 4050 54
BT4B 328003/HA1  220 340 303.5 303.5 3080 6700 100
331156 220.662 314.325 239.712 239.712 2200 5200 61.5


bearing
