bearing needle thrusts
bearing needle thrust

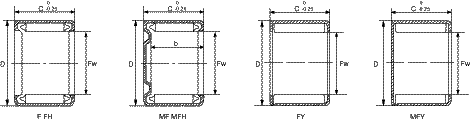

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating     Limiting Speed
Current Original Code Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
6 F-0608 30941/6 2.5 6 10 8 3080 5800 12000
6.35 F6.35X11.11X11.13 B-47 3.2 6.35 11.11 11.13 3500 6050 12000
MF6.35X11.11X11.13 M-471 4.1 6.35 11.11 11.13 3500 6050 12000
8 F-0810 50941/8 3.7 8 12 10 4050 7150 13000
FH-0810 941/8 7 8 14 10 5200 7150 7400
FH-0812 942/8 9 8 14 12 4550 7150 7400
9 F-0910 50941/9 4 9 13 10 4900 8050 12000
FH-0910 941/9 6 9 15 10 8000 11500 7100
FH9X15X13 942/9 8 9 15 13 8560 12800 7100
9.52 F9.52X14.29X12.7 B-68 7.5 9.52 14.29 12.7 9000 13300 7100
10 F-1010 50941/10 4.2 10 14 10 5700 9350 11000
FH-1010 941/10 6.5 10 16 10 6350 10800 11000
F10X16X15 942/10 12 10 16 15 6890 11500 7100
  943/10 10 16 17 6500 11000 7000
12 F-1212 60941/12 6 12 16 12 6380 10900 7100
F12X17X12 941/12 8 12 17 12 8400 11900 7100
F12X17X15 942/12 10.5 12 17 15 9000 12500 7100
F12X17X18 943/12 13 12 17 18 9800 13500 7100
15 F15X20X12 941/15 10 15 20 12 8400 11900 7100
F15X20X16 942/15 13.6 15 20 16 9500 12800 7100
F15X20X20 943/15 17.2 15 20 20 10500 16000 7100
FY15X20X20 Y152020 20 15 20 20 10500 16000 7100
F-1512 30941/15 12 15 21 12 9700 15900 8100
16 F-1616 50941/16 17 16 22 16 14100 25900 7700
17 F-1712 30941/17 13 17 23 12 10600 21600 7300
F-1714 941/17 15 17 23 14 12500 22500 7300
F-1718 942/17 21 17 23 18 13800 24800 7300
  943/17 17 23 22 13500 24000 7100
18 F-1816 50941/18 18 18 24 16 15000 29100 6900
20 F-2014 941/20 17 20 26 14 15800 40500 6900
F-2020 942/20 26 20 26 20 18800 42500 6900
F20X26X25 943/20 33 20 26 25 20500 35500 6300
25 F-2516 941/25 28 25 32 16 18700 37900 5100
F-2522 942/25 40 25 32 22 11000 16500 5100
F25X32X25 943/25 43 25 32 25 11500 18500 5100
F25X33X08 Y253308 16.7 25 33 8 12200 16800 4300
28 F-2820 60941/28 118 28 35 20 25700 58300 4600
30 F-3020 60941/30 42 30 37 20 26800 62500 4300
MF-3020 65941/30 48 30 37 20 26800 62500 4300
F30X38X16 941/30 37.5 30 38 16 25500 57500 4600
F30X38X24 942/30 37.5 30 38 24 28800 64500 4300
F30X38X32 943/30 81.5 30 38 32 34500 78900 4300
32   943/32 32
F-3216 40941/32 35 32 39 16 25800 61500 4300
35 F-3520 60941/35 49 35 42 20 24000 69100 3700
F35X43X16 941/35 41 35 43 16 23500 68000 3700
F35X43X25 942/35 72 35 43 25 38700 86200 3200
F35X43X32 943/35 90 35 43 32 40500 97800 3200
40 F-4020 60941/40 56 40 47 20 30300 82600 3300
FH4032 942/40 88 40 50 32 42500 108000 2600
MFH-4032 86942/40 95 40 50 32 42500 108000 2600
FH40X50X38 943/40 105 40 50 38 44800 118500 2600
45 F-4520   62 45 52 20 30400 90100 2900
FH45X55X38 943/45 140 45 55 38 45800 128000 2900
50 F-5020 50941/50 78 50 58 20 35800 98000 2600
FH50X60X38 943/50 145 50 60 38 50500 145800 2600
60 F60X68X40 943/60 185 60 68 40 50200 145000 2600
