China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, double row bearing, double row bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, double row bearing, double row bearings, competitive price and good service up to date.
double row bearing
double row bearings

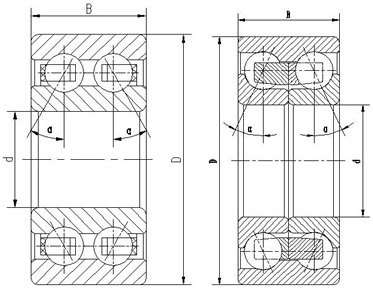

Bearing NO.  d D B C C0r Weight
mm mm mm kN kN kg
3200 ATN9 10 30 14 7.61 4.3 0.051
5200 ATN9 10 30 14.3 7.61 4.3 0.051
3201 ATN9 12 32 15.9 10.1 5.6 0.058
5201 ATN9 12 32 15.9 10.1 5.6 0.058
3202 ATN9 15 35 15.9 11.2 6.8 0.066
5202 ATN9 15 35 15.9 11.2 6.8 0.066
3302 ATN9 15 42 19 15.1 9.3 0.13
3203 ATN9 17 40 17.5 14.3 8.8 0.095
5203 ATN9 17 40 17.5 14.3 8.8 0.095
3303 ATN9 17 47 22.2 21.6 12.7 0.18
3204 ATN9 20 47 20.6 20 12 0.15
5204 A 20 47 20.6 20 12 0.16
5204 A-2RS1 20 47 20.6 20 12 0.14
5204 A-2Z 20 47 20.6 20 12 0.15
3304 ATN9 20 52 22.2 23.6 14.6 0.22
5304 A 20 52 22.2 23.6 14.6 0.2
5304 A-2RS1 20 52 22.2 23.6 14.6 0.21
5304 A-2Z 20 52 22.2 23.6 14.6 0.21
3205 A 25 52 20.6 21.6 14.3 0.19
3205 ATN9 25 52 20.6 21.6 14.3 0.18
5205 A 25 52 20.6 21.6 14.3 0.19


bearing
