China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, SL bearing, SL bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, SL bearing, SL bearings, competitive price and good service up to date.

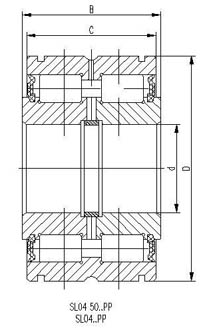

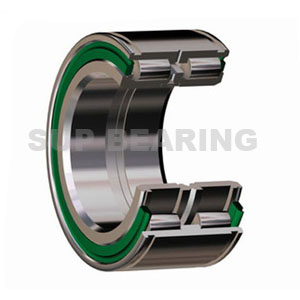

SL bearing

Bearings NO. d D C B Cr Cor Limiting speeds Weight
mm mm mm mm kN Kn rpm kg
SL045004pp 20 42 29 30 40.2 52 3600 0.21
SL045005pp 25 47 29 30 44.6 62 3000 0.23
SL045006pp 30 55 33 34 52.8 75 2600 0.35
SL045007pp 35 62 35 36 66 91.5 2200 0.45
SL045008pp 40 68 37 38 79 116 2000 0.53
SL045009pp 45 75 39 40 95 146 1880 0.68
SL045010pp 50 80 39 40 101 160 1700 0.73
SL045011pp 55 90 45 46 119 193 1500 1.1
SL045012pp 60 95 45 46 123 208 1400 1.2
SL045013pp 65 100 45 46 128 224 1300 1.3
SL045014pp 70 110 53 54 190 325 1200 1.85
SL045015pp 75 115 53 54 201 355 1100 2
SL045016pp 80 125 59 60 233 415 1000 2.7
SL045017pp 85 130 59 60 251 430 1000 2.75
SL045018pp 90 140 66 67 297 550 900 3.8
SL045019pp 95 145 66 67 303 570 900 3.95
SL045020pp 100 150 66 67 308 570 850 4.05
SL045022pp 110 170 79 80 380 695 750 6.45
SL045024pp 120 180 79 80 402 750 700 6.9
SL045026pp 130 200 94 95 572 1040 630 10.5
SL04130pp 130 190 79 80 430 790 800 7.5
SL045028pp 140 210 94 95 594 1120 600 11
SL04140pp 140 200 79 80 445 840 750 8
SL045030pp 150 225 99 100 693 1290 560 13.5
SL04150pp 150 210 79 80 465 920 700 8.4
SL045032pp 160 240 108 109 721 1400 500 16.5
SL04160pp 160 220 79 80 480 970 700 8.8
SL045034pp 170 260 121 122 935 1800 480 22.5
SL04170pp 170 230 79 80 490 1030 650 9.3
SL045036pp 180 280 135 136 1080 2120 450 30
SL04180pp 180 240 79 80 500 1080 600 12.7
SL045038pp 190 290 135 136 1100 2200 430 31.5
SL04190pp 190 260 79 80 520 1130 550 12.7
SL045040pp 200 310 149 150 1340 2900 400 42
SL04200pp 200 270 79 80 540 1210 550 13.2
SL045044pp 220 340 159 160 1510 3100 360 53.5
SL04220pp 220 300 94 95 700 1550 480 19.5
SL045048pp 240 360 159 160 1570 3350 340 57.5
SL04240pp 240 320 94 95 740 1700 480 21
SL04260pp 260 340 94 95 840 1990 440 22.5
SL04300pp 300 380 94 95 900 2250 380 25.5


bearing
