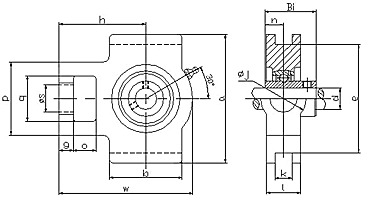

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
UCTX05-14 UCTX05-15 UCTX05-16 UCTX05	7/8 15/16 1	25	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	UCX05-14 UCX05-15 UCX05-16 UCX05	TX05	1.01


UCTX06-18 UCTX06-19 UCTX06-20 UCTX06	1-1/8 1-3/16 1-1/4	30	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	UCX06-18 UCX06-19 UCX06-20 UC306	TX06	1.12
UCTX07-20 UCTX07-22 UCTX07-23 UCTX07	1-1/4 1-3/8 1-7/16	35	19	15	83	49	29	83	16	102	114	144	49	36	88	49.2	19	UCX07-20 UCX07-22 UCX07-23 UC307	TX07	1.78
UCTX08-24 UCTX08	1-1/2	40	19	15	83	49	29	83	16	102	117	144	49	36	87	49.2	19	UCX08-24 UCX08	TX08	1.67
UCTX09-26 UCTX09-27 UCTX09-28 UCTX09	1-5/8 1-11/16 1-3/4	45	19	16	83	49	29	86	16	102	117	149	49	38	90	51.6	19	UCX09-26 UCX09-27 UCX09-28 UCX09	TX09	1.8
UCTX10-30 UCTX10-31 UCTX10-32 UCTX10	1-7/8 1-15/16 2	50	25	19	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	UCX10-30 UCX10-31 UCX10-32 UCX10	TX10	2.95
UCTX11-34 UCTX11-35 UCTX11	2-1/8 2-3/16 2-1/4	55	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	UCX11-34 UCX11-35 UCX11	TX11	3.3
UCTX12-38 UCTX12-39 UCTX12	2-3/8 2-7/16	60	32	21	111	70	41	121	26	151	167	224	70	48	137	65.1	25.4	UCX12-38 UCX12-39 UCX12	TX12	5.33
UCTX13-40 UCTX13	2-1/2	65	32	21	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	UCX13-40 UCX13	TX13	5.15
UCTX14-43 UCTX14-44 UCTX14	2-11/16 2-3/4	70	32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	UCX14-43 UCX14-44 UCX14	TX14	5.23
UCTX15-47 UCTX18-48 UCTX15	2-15/16 3	75	32	21	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	UCX15-47 UCX15-48 UCX15	TX15	5.29
UCTX16-50 UCTX16	3-1/8	80	38	28	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	UCX16-50 UCX16	TX16	7.21
UCTX17-52 UCTX17-55 UCTX17	3-1/4 3-7/16	85	38	28	124	73	48	157	28	173	198	260	73	54	162	96	39.7	UCX17-52 UCX17-55 UCX17	TX17	7.18
