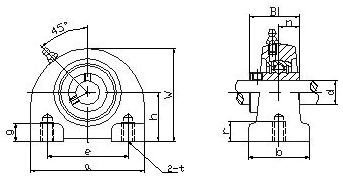

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt(kg)
h a e b t r g w Bi n (mm)
(in) (mm)
UCPW201-8 1/2   33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC201-8 PW204 0.38
UCPW202-9 9/16   UC202-9
UCPW202-10 5/8   UC202-10
UCPW203-11 11/16   UC203-11
UCPW204-12 3/4   UC204-12
UCPW201   12 UC201
UCPW202   15 UC202
UCPW203   17 UC203
UCPW204   20 UC204
UCPW205-13 13/16 25 36.5 70 50.8 36 M10 13 13 70 34 14.3 M10x1.5 UC205-13 PW205 0.40
UCPW205-14 7/8 UC205-14
UCPW205-15 15/16 UC205-15
UCPW205-16 1 UC205-16
UCPW205   UC205
UCPW206-17 1-1/16 30 42.9 98 76.2 38 M10 16 15 82 38.1 15.9 M10x1.5 UC206-17 PW206 0.85
UCPW206-18 1-1/8 UC206-18
UCPW206-19 1-3/16 UC206-19
UCPW206-20 1-1/4 UC206-20
UCPW206   UC206
UCPW207-20 1-1/4 35 47.6 103 82.6 45 M10 19 15 93 42.9 17.5 M10x1.5 UC207-20 PW207 0.90
UCPW207-21 1-5/16 UC207-21
UCPW207-22 1-3/8 UC207-22
UCPW207-23 1-7/16 UC207-23
UCPW207   UC207
UCPW208-24 1-1/2 40 49.2 116 88.9 47 M12 19 15 99 49.2 19.0 M12x1.75 UC208-24 PW208 1.25
UCPW208-25 1-9/16 UC208-25
UCPW208   UC208
UCPW209-26 1-5/8 45 53.9 120 95.3 48 M12 19 18 107 49.2 19.0 M12x1.75 UC209-26 PW209 1.52
UCPW209-27 1-11/16 UC209-27
UCPW209-28 1-3/4 UC209-28
UCPW209   UC209
UCPW210-29 1-13/16 50 57.2 135 101.6 54 M16 22 18 115 51.6 19.0 M16x2 UC210-29 PW210 1.90
UCPW210-30 1-7/8 UC210-30
UCPW210-31 1-15/16 UC210-31
UCPW210-32 2 UC210-32
UCPW210   UC210
