China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, mounted bearing unit, mounted bearing units, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, mounted bearing unit, mounted bearing units, competitive price and good service up to date.
mounted bearing unit

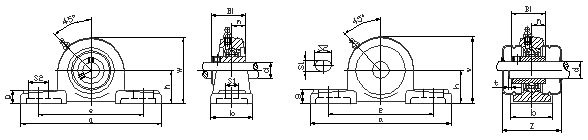

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
h a e b S2 S1 g w t Z Bi n (mm) (in)
(in) (mm)
UCP201-8 1/2   30.2 127 95 38 19 13 14 62 2 51 31 12.7 M10 3/8 UC201-8 P203 0.33
UCP202-9 9/16   UC202-9
UCP202-10 5/8   UC202-10
UCP203-11 11/16   UC203-11
UCP201   12 UC201
UCP202   15 UC202
UCP203   17 UC203
UCP204-12 3/4   33.3 127 95 38 19 13 14 65 2 51 31 12.7 M10 3/8 UC204-12 P204 0.46
UCP204   20 UC204
UCP205-13 13/16 25 36.5 140 105 38 19 13 15 71 2 57 34.1 14.3 M10 3/8 UC205-13 P205 0.60
UCP205-14 7/8 UC205-14
UCP205-15 15/16 UC205-15
UCP205-16 1 UC205-16
UCP205   UC205
UCP206-17 1-1/16 30 42.9 165 121 48 21 17 17 83 2 62 38.1 15.9 M14 1/2 UC206-17 P206 0.97
UCP206-18 1-1/8 UC206-18
UCP206-19 1-3/16 UC206-19
UCP206-20 1-1/4 UC206-20
UCP206   UC206
UCP207-20 1-1/4 35 47.6 167 127 48 21 17 18 93 3 72 42.9 17.5 M14 1/2 UC207-20 P207 1.00
UCP207-21 1-5/16 UC207-21
UCP207-22 1-3/8 UC207-22
UCP207-23 1-7/16 UC207-23
UCP207   UC207
UCP208-24 1-1/2 40 49.2 184 137 54 21 17 18 98 3 82 49.2 19.0 M14 1/2 UC208-24 P208 1.30
UCP208-25 1-9/16 UC208-25
UCP208   UC208
UCP209-26 1-5/8 45 54 190 146 54 21 17 20 106 3 82 49.2 19.0 M14 1/2 UC209-26 P209 1.40
UCP209-27 1-11/16 UC209-27
UCP209-28 1-3/4 UC209-28
UCP209   UC209
UCP210-29 1-13/16 50 57.2 206 159 60 25 20 21 114 3 87 51.6 19.0 M16 5/8 UC210-29 P210 1.83
UCP210-30 1-7/8 UC210-30
UCP210-31 1-15/16 UC210-31
UCP210-32 2 UC210-32
UCP210   UC210
UCP211-32 2 55 63.5 219 171 60 25 20 23 126 4 92 55.6 22.2 M16 5/8 UC211-32 P211 2.4
UCP211-33 2-1/16 UC211-33
UCP211-34 2-1/8 UC211-34
UCP211-35 2-3/16 UC211-35
UCP211   UC211
UCP212-36 2-1/4 60 69.8 241 184 70 25 20 25 138 4 102 65.1 25.4 M16 5/8 UC212-36 P212 2.8
UCP212-37 2-5/16 UC212-37
UCP212-38 2-3/8 UC212-38
UCP212-39 2-7/16 UC212-39
UCP212   UC212
UCP213-40 2-1/2 65 76.2 265 203 70 29 25 27 151 4 107 65.1 25.4 M20 3/4 UC213-40 P213 3.5
UCP213-41 2-9/16 UC213-41
UCP213   UC213
UCP214-42 2-5/8 70 79.4 266 210 72 31 25 27 157     74.6 30.2 M20 3/4 UC214-42 P214 4.45
UCP214-43 2-11/16 UC214-43
UCP214-44 2-3/4 UC214-44
UCP214   UC214
UCP215-45 2-13/16 75 82.6 275 217 74 31 25 28 163     77.8 33.3 M20 3/4 UC215-45 P215 4.9
UCP215-46 2-7/8 UC215-46
UCP215-47 2-15/16 UC215-47
UCP215-48 3 UC215-48
UCP215   UC215
UCP216-50 3-1/8 80 88.9 292 232 78 31 25 30 175     82.6 33.3 M20 3/4 UC216-50 P216 5.8
UCP216   UC216
UCP217-52 3-1/4 85 95.2 310 247 83 31 25 32 187     85.7 34.1 M20 3/4 UC217-52 P217 6.9
UCP217   UC217
UCP218-56 3-1/2 90 101.6 327 262 88 33 27 33 200     96.0 39.7 M22 7/8 UC218-56 P218 8.10
UCP218   UC218
