Bearing Unit
NO. |
Shaft Dia
d |

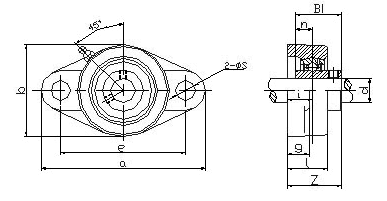

Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing
No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
i |
g |
l |
s |
b |
z |
Bi |
n |
(in) |
(mm) |
UCFLX05-13
UCFLX05-14
UCFLX05-15
UCFLX05-16
UCFLX05 |
13/16
7/8
15/16
1
|
25 |
141 |
117 |
18 |
13 |
30 |
12 |
83 |
40.2 |
38.1 |
15.9 |
3/8 |
M10 |
UCX05-13
UCX05-14
UCX05-15
UCX05-16
UCX05 |
FLX05 |
0.61 |
UCFLX06-17
UCFLX06-18
UCFLX06-19
UCFLX06-20
UCFLX06 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
156 |
130 |
19 |
14 |
34 |
16 |
95 |
44.4 |
42.9 |
17.5 |
1/2 |
M14 |
UCX06-17
UCX06-18
UCX06-19
UCX06-20
UCX06 |
FLX06 |
0.82 |
UCFLX07-20
UCFLX07-21
UCFLX07-22
UCFLX07-23
UCFLX07 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
171 |
144 |
21 |
14 |
38 |
16 |
105 |
51.2 |
49.2 |
19 |
1/2 |
M14 |
UCX07-20
UCX07-21
UCX07-22
UCX07-23
UCX07 |
FLX07 |
1.31 |
UCFLX08-24
UCFLX08-25
UCFLX08 |
1-1/2
1-9/16
|
40 |
179 |
148 |
22 |
14 |
40 |
16 |
111 |
52.2 |
49.2 |
19 |
1/2 |
M14 |
UCX08-24
UCX08-25
UCX08 |
FLX08 |
1.27 |
UCFLX09-26
UCFLX09-27
UCFLX09-28
UCFLX09 |
1-5/8
1-11/16
1-3/4
|
45 |
189 |
157 |
23 |
14 |
40 |
16 |
116 |
55.6 |
51.6 |
19 |
1/2 |
M14 |
UCX09-26
UCX09-27
UCX09-28
UCX09 |
FLX09 |
1.4 |
UCFLX10-29
UCFLX10-30
UCFLX10-31
UCFLX10-32
UCFLX10 |
1-13/16
1-7/8
1-15/16
2
|
50 |
216 |
184 |
26 |
20 |
44 |
19 |
133 |
59.4 |
55.6 |
22.2 |
5/8 |
M16 |
UCX10-29
UCX10-30
UCX10-31
UCX10-32
UCX10 |
FLX10 |
2.05 |
