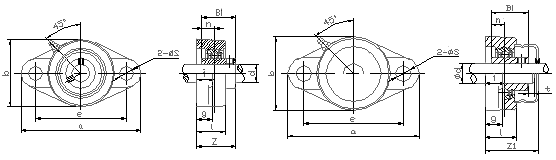

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
a e i g l s b t z1 z Bi n (mm) (in)
(in) (mm)
UCFL201-8
UCFL202-9
UCFL202-10
UCFL203-11
UCFL201
UCFL202
UCFL203		 1/2
9/16
5/8
11/16


 12
15
17		 99 76.5 15 13 25.5 11.5 57     31 26 10 M10 3/8 UCW201-8
UCW202-9
UCW202-10
UCW203-11
UCW201
UCW202
UCW203		 FL203 0.25
UCFL201-8 1/2   113 90 15 12 25.5 12 60 2 40.5 33.3 31 12.7 M10 3/8 UC201-8 FL204 0.28
UCFL202-9 9/16   UC202-9
UCFL202-10 5/8   UC202-10
UCFL203-11 11/16   UC203-11
UCFL204-12 3/4   UC204-12
UCFL201   12 UC201
UCFL202   15 UC202
UCFL203   17 UC203
UCFL204   20 UC204
UCFL205-13 13/16 25 130 99 16 14 27 16 68 2 44.5 35.7 34.1 14.3 M14 1/2 UC205-13 FL205 0.4
UCFL205-14 7/8 UC205-14
UCFL205-15 15/16 UC205-15
UCFL205-16 1 UC205-16
UCFL205   UC205
UCFL206-17 1-1/16 30 148 117 18 14 31 16 80 2 49 40.2 38.1 15.9 M14 1/2 UC206-17 FL206 0.54
UCFL206-18 1-1/8 UC206-18
UCFL206-19 1-3/16 UC206-19
UCFL206-20 1-1/4 UC206-20
UCFL206   UC206
UCFL207-20 1-1/4 35 161 130 19 16 34 16 90 3 55 44.4 42.9 17.5 M14 1/2 UC207-20 FL207 0.65
UCFL207-21 1-5/16 UC207-21
UCFL207-22 1-3/8 UC207-22
UCFL207-23 1-7/16 UC207-23
UCFL207   UC207
UCFL208-24 1-1/2 40 175 144 21 16 36 16 100 3 62 51.2 49.2 19 M14 1/2 UC208-24 FL208 0.8
UCFL208-25 1-9/16 UC208-25
UCFL208   UC208
UCFL209-26 1-5/8 45 188 148 22 18 38 19 108 3 63 52.2 49.2 19 M16 5/8 UC209-26 FL209 1.15
UCFL209-27 1-11/16 UC209-27
UCFL209-28 1-3/4 UC209-28
UCFL209   UC209
UCFL210-29 1-13/16 50 197 157 22 18 40 19 115 3 66.5 54.6 51.6 19 M16 5/8 UC210-29 FL210 1.25
UCFL210-30 1-7/8 UC210-30
UCFL210-31 1-15/16 UC210-31
UCFL210-32 2 UC210-32
UCFL210   UC210
UCFL211-32 2 55 224 184 25 20 43 19 130 4 71 58.4 55.6 22.2 M16 5/8 UC211-32 FL211 1.85
UCFL211-33 2-1/16 UC211-33
UCFL211-34 2-1/8 UC211-34
UCFL211-35 2-3/16 UC211-35
UCFL211   UC211
UCFL212-36 2-1/4 60 250 202 29 20 48 23 140 4 80 68.7 65.1 25.4 M20 3/4 UC212-36 FL212 2.10
UCFL212-37 2-5/16 UC212-37
UCFL212-38 2-3/8 UC212-38
UCFL212-39 2-7/16 UC212-39
UCFL212   UC212
UCFL213-40 2-1/2 65 258 210 30 24 50 23 155 4 83.5 69.7 65.1 25.4 M20 3/4 UC213-40 FL213 2.8
UCFL213-41 2-9/16 UC213-41
UCFL213   UC213
UCFL214-42 2-5/8 70 265 216 31 24 54 23 160     75.4 74.6 30.2 M20 3/4 UC214-42 FL214 3.2
UCFL214-43 2-11/16 UC214-43
UCFL214-44 2-3/4 UC214-44
UCFL214   UC214
UCFL215-45 2-13/16 75 275 225 34 24 56 23 165     78.5 77.8 33.3 M20 3/4 UC215-45 FL215 2.8
UCFL215-46 2-7/8 UC215-46
UCFL215-47 2-15/16 UC215-47
UCFL215-48 3 UC215-48
UCFL215   UC215
UCFL216-50 3-1/8 80 290 233 34 24 58 25 180     83.3 82.6 33.3 M22 7/8 UC216-50 FL216 3.53
UCFL216   UC216
UCFL217-52 3-1/4 85 305 248 36 26 63 25 190     87.6 85.7 34.1 M22 7/8 UC217-52 FL217 5.5
UCFL217   UC217
UCFL218-56 3-1/2 90 320 265 40 26 68 25 205     96.3 96 39.7 M22 7/8 UC218-56 FL218 6.0
UCFL218   UC218
