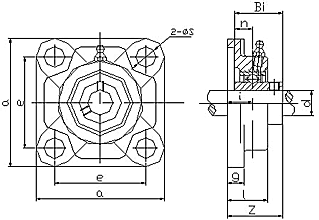

BearingUint No.	Shaft Dia d		Dimensinons(mm)									Bolt Used		BearingUint No.	Housing No.	Housing Wt (kg)
			a	e	i	g	l	s	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCF305-14	7/8	25	110	80	16	13	29	16	39	38	15	M14	1/2	UC305-14	F305	0.90
UCF305-15	15/16													UC305-15
UCF305-16	1													UC305-16
UCF305														UC305
UCF306-18	1-1/8	30	125	95	18	15	32	16	44	43	17	M14	1/2	UC306-18	F306	1.28
UCF306-19	1-3/16													UC306-19
UCF306														UC306
UCF307-20	1-1/4	35	135	100	20	16	36	19	49	48	19	M16	5/8	UC307-20	F307	1.57
UCF307-21	1-5/16													UC307-21
UCF307-22	1-3/8													UC307-22
UCF307-23	1-7/16													UC307-23
UCF307														UC307
UCF308-24	1-1/2	40	150	112	23	17	40	19	56	52	19	M16	5/8	UC308-24	F308	2.00
UCF308-25	1-9/16													UC308-25
UCF308														UC308
UCF309-26	1-5/8	45	160	125	25	18	44	19	60	57	22	M16	5/8	UC309-26	F309	2.60
UCF309-27	1-11/16													UC309-27
UCF309-28	1-3/4													UC309-28
UCF309														UC309
UCF310-30	1-7/8	50	175	132	28	19	48	23	67	61	22	M20	3/4	UC310-30	F310	2.68
UCF310-31	1-15/16													UC310-31
UCF310														UC310
UCF311-32	2	55	185	140	30	20	52	23	71	66	25	M20	3/4	UC311-32	F311	3.30
UCF311-34	2-1/8													UC311-34
UCF311-35	2-3/16													UC311-35
UCF311														UC311
UCF312-36	2-1/4	60	195	150	33	22	56	23	78	71	26	M20	3/4	UC312-36	F312	4.1
UCF312-38	2-3/8													UC312-38
UCF312-39	2-7/16													UC312-39
UCF312														UC312
UCF313-40	2-1/2	65	208	166	33	22	58	23	78	75	30	M20	3/4	UC313-40	F313	4.9
UCF313														UC313
UCF314-44	2-3/4	70	226	178	36	25	61	25	81	78	33	M22	7/8	UC314-44	F314	5.6
UCF314														UC314
UCF315-48	3	75	236	184	39	25	66	25	89	82	32	M22	7/8	UC315-48	F315	7.00
UCF315														UC315
UCF316-50	3-1/8	80	250	196	38	27	68	31	90	86	34	M27	1	UC316-50	F316	9.0
UCF316														UC316
UCF317-52	3-1/4	85	260	204	44	27	74	31	100	96	40	M27	1	UC317-52	F317	10.5
UCF317														UC317
UCF318-56	3-1/2	90	280	216	44	30	76	35	100	96	40	M30	1-1/8	UC318-56	F318	12.8
UCF318														UC318
UCF319-60 UCF319	3-3/4	95	290	228	59	30	94	35	121	103	41	M30	1-1/8	UC319-60 UC319	F319	13.80
UCF320-64 UCF320	4	100	310	242	59	32	94	38	125	108	42	M33	1-1/4	UC320-64 UC320	F320	15.2
UCF321		105	310	242	59	32	94	38	127	112	44	M33	1-1/4	UC321	F321	15.00
UCF322		110	340	266	60	35	96	41	131	117	46	M36		UC322	F322	21.80
UCF324		120	370	290	65	40	110	41	140	126	51	M36		UC324	F324	25.20
UCF326		130	410	320	65	45	115	41	146	135	54	M36		UC326	F326	37.00
UCF328		140	450	350	75	55	125	41	161	145	59	M36		UC328	F328	57.80
