| Bearing Unit NO. |
Shaft Dia d |

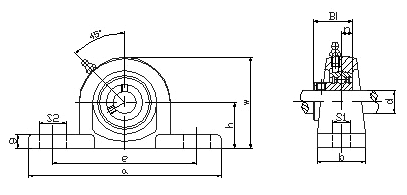

Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| (in) |
(mm) |
h |
a |
e |
b |
s1 |
s2 |
g |
w |
Bi |
n |
(in) |
(mm) |
SBLLP201-8
SBLLP202-9
SBLLP202-10
SBLLP203-11
SBLLP201
SBLLP202
SBLLP203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
30.2 |
114 |
87 |
25 |
12 |
16 |
12 |
57 |
22 |
6 |
3/8 |
M10 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
LLP203 |
0.29 |
SBLLP204-12
SBLLP204 |
3/4
|
20 |
33.3 |
125 |
97 |
27 |
12 |
16 |
13 |
64 |
24.7 |
7 |
3/8 |
M10 |
SB204-12
SB204 |
LLP204 |
0.38 |
SBLLP205-14
SBLLP205-15
SBLLP205-16
SBLLP205 |
7/8
15/16
1
|
25 |
36.5 |
130 |
100 |
29 |
12 |
16 |
13 |
70 |
27 |
7.5 |
3/8 |
M10 |
SB205-14
SB205-15
SB205-16
SB205 |
LLP205 |
0.45 |
SBLLP206-17
SBLLP206-18
SBLLP206-19
SBLLP206-20
SBLLP206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
42.9 |
156 |
120 |
33 |
14 |
21 |
15 |
83 |
30.3 |
8 |
7/16 |
M12 |
SB206-17
SB206-18
SB206-19
SB206-20
SB206 |
LLP206 |
0.47 |
SBLLP207-20
SBLLP207-21
SBLLP207-22
SBLLP207-23
SBLLP207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
47.6 |
165 |
127 |
35 |
14 |
21 |
16 |
93 |
32.9 |
8.5 |
7/16 |
M12 |
SB207-20
SB207-21
SB207-22
SB207-23
SB207 |
LLP207 |
0.6 |
