Ningbo SUP bearing Co.,Ltd.

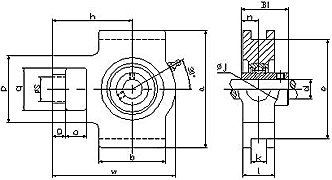

Bearing Unit No.	Shaft Dia d		Dimensionsmm															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit No.	in	mm	o	g	p	q	s	b	k	e	a	W	J	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
MUCT201-8 MUCT202-10 MUCT204-12 MUCT204	1/2 5/8 3/4	20	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	MUC201-8 MUC202-10 MUC204-12 MUC204	MT204	0.75
MUCT205-14 MUCT205-15 MUCT205-16 MUCT205	7/8 15/16 1	25	16	10	51	32	19	51	12	76	89	97	32	24	62	34	14.3	MUC205-14 MUC205-15 MUC205-16 MUC205	MT205	0.70
MUCT206-17 MUCT206-18 MUCT206-19 MUCT206-20 MUCT206	1-1/16 1-1/8 1-3/16 1-1/4	30	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	MUC206-17 MUC206-18 MUC206-19 MUC206-20 MUC206	MT206	1.00
MUCT207-20 MUCT207-21 MUCT207-22 MUCT207-23 MUCT207	1-1/4 1-5/16 1-3/8 1-7/16	35	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	MUC207-20 MUC207-21 MUC207-22 MUC207-23 MUC207	MT207	1.25
MUCT208-24 MUCT208	1-1/2	40	19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	MUC208-24 MUC208	MT208	2.30
MUCT209-26 MUCT209-27 MUCT209-28 MUCT209	1-5/8 1-11/16 1-3/4	45	19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	MUC209-26 MUC209-27 MUC209-28 MUC209	MT209	3.00
MUCT210-30 MUCT210-31 MUCT210-32 MUCT210	1-7/8 1-15/16 2	50	19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	MUC210-30 MUC210-31 MUC210-32 MUC210	MT210	3.20
