| Bearing Unit No. |
Shaft Dia
d |

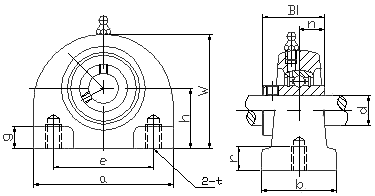

Dimensions(mm) |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| in |
mm |
h |
a |
e |
w |
b |
s |
r |
Bi |
n |
MUCPA201-8
MUCPA202-10
MUCPA204-12
MUCPA204 |
1/2
5/8
3/4
|
20 |
33.3 |
73 |
50.8 |
65 |
38 |
3/8-16 |
13 |
31 |
12.7 |
MUC201-8
MUC202-10
MUC204-12
MUC204 |
MPA204 |
0.48 |
MUCPA205-14
MUCPA205-15
MUCPA205-16
MUCPA205 |
7/8
15/16
1
|
25 |
36.5 |
76 |
50.8 |
71 |
38 |
3/8-16 |
13 |
34 |
14.3 |
MUC205-14
MUC205-15
MUC205-16
MUC205 |
MPA205 |
0.6 |
MUCPA206-17
MUCPA206-18
MUCPA206-19
MUCPA206-20
MUCPA206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
42.9 |
102 |
76.2 |
86 |
38 |
7/16-14 |
16 |
38.1 |
15.9 |
MUC206-17
MUC206-18
MUC206-19
MUC206-20
MUC206 |
MPA206 |
1.05 |
MUCPA207-20
MUCPA207-21
MUCPA207-22
MUCPA207-23
MUCPA207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
47.6 |
108 |
82.6 |
95 |
48 |
1/2-13 |
19 |
42.9 |
17.5 |
MUC207-20
MUC207-21
MUC207-22
MUC207-23
MUC207 |
MPA207 |
1.4 |
MUCPA208-24
MUCPA208 |
1-1/2
|
40 |
49.2 |
117 |
88.9 |
100 |
48 |
1/2-13 |
19 |
49.2 |
19 |
MUC208-24
MUC208 |
MPA208 |
1.55 |
MUCPA209-26
MUCPA209-27
MUCPA209-28
MUCPA209 |
1-5/8
1-11/16
1-3/4
|
45 |
54 |
127 |
95.3 |
108 |
51 |
1/2-13 |
19 |
51.6 |
19 |
MUC209-26
MUC209-27
MUC209-28
MUC209 |
MPA209 |
1.82 |
MUCPA210-30
MUCPA210-31
MUCPA210-32
MUCPA210 |
1-7/8
1-15/16
2
|
50 |
57.2 |
140 |
101.6 |
117 |
51 |
5/8-11 |
22 |
55.6 |
19 |
MUC210-30
MUC210-31
MUC210-32
MUC210 |
MPA210 |
2.3 |
