Ningbo SUP bearing Co.,Ltd.

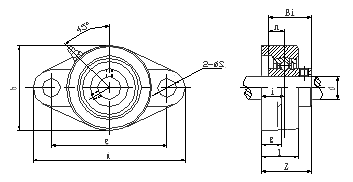

Bearing Unit No.	Shaft Dia d		Dimensionsmm										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit No.	in	mm	a	e	i	g	l	s	b	z	Bi	n	in	mm	Bearing No.	Housing No.	Housing Wt (kg)
MUCFL201-8 MUCFL202-10 MUCFL204-12 MUCFL204	1/2 5/8 3/4	20	113	90	15	11	25.5	10.5	60	33.3	31	12.7	5/16	M8	MUC201-8 MUC202-10 MUC204-12 MUC204	MFL204	0.32
MUCFL205-14 MUCFL205-15 MUCFL205-16 MUCFL205	7/8 15/16 1	25	130	99	16	13	27	12.5	68	35.7	34	14.3	3/8	M10	MUC205-14 MUC205-15 MUC205-16 MUC205	MFL205	0.5
MUCFL206-17 MUCFL206-18 MUCFL206-19 MUCFL206-20 MUCFL206	1-1/16 1-1/8 1-3/16 1-1/4	30	148	117	18	13	31	12.5	80	40.2	38.1	15.9	3/8	M10	MUC206-17 MUC206-18 MUC206-19 MUC206-20 MUC206	MFL206	0.69
MUCFL207-20 MUCFL207-21 MUCFL207-22 MUCFL207-23 MUCFL207	1-1/4 1-5/16 1-3/8 1-7/16	35	161	130	19	16	34	14	90	44.4	42.9	17.5	7/16	M12	MUC207-20 MUC207-21 MUC207-22 MUC207-23 MUC207	MFL207	0.86
MUCFL208-24 MUCFL208	1-1/2	40	175	144	21	16	36	14	100	51.2	49.2	19	7/16	M12	MUC208-24 MUC208	MFL208	1.04
MUCFL209-26 MUCFL209-27 MUCFL209-28 MUCFL209	1-5/8 1-11/16 1-3/4	45	188	148	22	13	38	16	108	52.5	49.2	19	1/2	M14	MUC209-26 MUC209-27 MUC209-28 MUC209	MFL209	1.21
MUCFL210-30 MUCFL210-31 MUCFL210-32 MUCFL210	1-7/8 1-15/16 2	50	197	157	22	13	40	16	115	54.6	51.6	19	1/2	M14	MUC210-30 MUC210-31 MUC210-32 MUC210	MFL210	1.52
