extraction sleeve,extraction sleeves manufacturer and extraction sleeve,extraction sleeves supplier--China Ningbo SUP bearing Co.,Ltd.

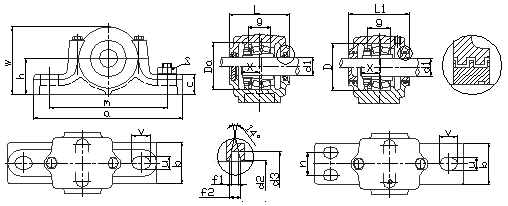

Housing No.	Shaft Dia d1		Dimensions(mm)																		Housing Wt (kg)	Bearing No.		Adapter Sleeve		Locating Ring
Housing No.	mm	in	D H8	a	b	c	g H12	h h12	L	L1	W	m	n	u	v	s	d2 H12	d3 H12	f1 H12	f2	Housing Wt (kg)	Bearing No.		Adapter Sleeve		Number	QTY
SN605	20	3/4	62	185	52	22	34	50	80	83	90	150	25	15	20	M12	21.5	31	3	4.2	2.1	1305K 2305K		H305 H2305	HE305 HE2305	SR62x8.5 SR62x10	2 1
SN606	25	1	72	185	52	22	37	50	82	85	95	150	25	15	20	M12	26.5	38	4	5.4	3.1	1306K 2306K		H306 H2306	HE306 HE2306	SR72x9 SR72x10	2 1
SN607	30	1-1/8	80	205	60	25	41	60	90	93	110	170	30	15	20	M12	31.5	43	4	5.4	3.73	1307K 2307K		H307 H2307	HE307 HE2307	SR80x10 SR80x10	2 1
SN608	35	1-1/4	90	205	60	25	43	60	95	100	115	170	30	15	20	M12	36.5	48	4	5.4	4.6	1308K 2308K	21308K 22308K	H308 H2308	HE308 HE2308	SR90x10 SR90x10	2 1
SN609 SSN609	40	1-1/2	100	255	70	28	46	70	105	110	130	210	35	18	23	M16	41.5	53	4	5.4	5.7 8.0	1309K 2309K	21309K 22309K	H309 H2309	HE309 HE2309	SR100x10.5 SR100x10	2 1
SN610 SSN610	45	1-3/4	110	255	70	30	50	70	115	120	135	210	35	18	23	M16	46.5	58	4	5.4	6.5 9.0	1310K 2310K	21310K 22310K	H310 H2310	HE310 HE2310	SR110x11.5 SR110x10	2 1
SN611 SSN611	50	2	120	275	80	30	53	80	120	125	150	230	40	18	23	M16	51.5	67	5	6.9	6.8 9.5	1311K 2311K	21311K 22311K	H311 H2311	HE311 HE2311	SR120x12 SR120x10	2 1
SN612 SSN612	55	2-1/8	130	280	80	30	56	80	125	130	155	230	40	18	23	M16	56.5	72	5	6.9	8.6 11	1312K 2312K	21312K 22312K	H312 H2312	HE312 HE2312	SR130x12.5 SR130x10	2 1
SN613 SSN613	60	2-1/4	140	315	90	32	58	95	130	135	175	260	50	22	27	M20	62	77	5	6.8	11.1 14	1313K 2313K	21313K 22313K	H313 H2313	HE313 HE2313	SR140x12.5 SR140x10	2 1
SN615 SSN615	65	2-1/2	160	345	100	35	65	100	140	145	195	290	50	22	27	M20	67	82	5	6.8	15.2 19.1	1315K 2315K	21315K 22315K	H315 H2315	HE315 HE2315	SR160x14 SR160x10	2 1
SN616 SSN616	70	2-3/4	170	345	100	35	68	112	145	150	212	290	50	22	27	M20	72	89	6	8.1	17.8 21.2	1316K 2316K	21316K 22316K	H316 H2316	HE316 HE2316	SR170x14.5 SR170x10	2 1
SN617 SSN617	75	3	180	380	110	40	70	112	155	160	218	320	60	26	32	M24	77	94	6	8.1	19.5 25	1317K 2317K	21317K 22317K	H317 H2317	HE317 HE2317	SR180x14.5 SR180x10	2 1
SN618 SSN618	80	3-1/4	190	400	110	33	74	112	160	165	230	320	60	26	35	M24	82	99	6	8.1	25.3 29.3	1318K 2318K	22318K	H318 H2318	HE318 HE2318	SR190x15.5 SR190x10	2 1
SN619 SSN619	85		200	420	120	36	77	125	170	175	245	350	70	26	35	M24	87	104	6	8.1	27 32.3	1319K 2319K	22319K	H319 H2319	HE319 HE2319	SR200x16 SR200x10	2 1
SN620 SSN620	90	3-1/2	215	420	120	38	83	140	175	180	280	350	70	26	35	M24	92	111	7	9.3	32 36	1320K 2320K	22320K	H320 H2320	HE320 HE2320	SR215x18 SR215x10	2 1
SN622 SSN622	100	4	240	460	130	40	90	150	190	195	300	390	70	28	38	M24	102	125	8	10.8	43.4 51	1322K 2322K	22322K	H322 H2322	HE322 HE2322	SR240x20 SR240x10	2 1
SN624 SSN624	110	4-1/4	260	540	160	50	96	160	205	210	325	450	90	33	42	M30	113	135	8	10.7	54.6 64		22324K	H2324	HE2324	SR260x10	2 1
SN626 SSN626	115	4-1/2	280	560	160	50	103	170	215	220	350	470	90	33	42	M30	118	140	8	10.7	67.2 78		22326K	H2326	HE2326	SR280x10	2 1
SN628 SSN628	125	5	300	630	170	55	112	180	235	240	375	520	90	35	45	M30	128	154	9	12.2	92.6 105		22328K	H2328	HE2328	SR300x10	2 1
SN630 SSN630	135	5-1/4	320	680	180	55	118	190	245	250	395	560	90	35	45	M30	138	164	9	12.2	101.5 113.0		22330K	H2330	HE2330	SR320x10	2 1
SN632 SSN632	140	5-1/2	340	710	190	60	124	200	255	260	415	580	100	42	52	M36	143	173	10	13.7	122.3 135.6		22332K	H2332	HE2332	SR340x10	2 1
