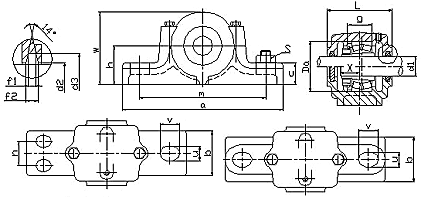

Housing No.		Shaft dia d1	Dimensions(mm)																		Hou- sing Wt (kg)	Bearing No.	Adapter Sleeve	Locating Ring		Housing No.
			D H8	a	b	c	g H12	h h12	L	W	m	n	u	v	f1 H13	f2	S		d2 H12	d3 H12				Locating Ring
			D H8	a	b	c	g H12	h h12	L	W	m	n	u	v	f1 H13	f2	(2)	(4)	d2 H12	d3 H12				Number	Q T Y
SN3024	SSN3024	110	180	380	110	40	56	112	160	218	320	60	26	32	8	10.7	M24	M16	113	135	17	23024K	H3024	SR180x10	1	SSN3024
SN3026	SSN3026	115	200	410	120	45	62	125	175	240	350	70	26	32	8	10.7	M24	M16	118	140	20	23026K	H3026	SR200x10	1	SSN3026
SN3028	SSN3028	125	210	410	120	45	63	140	185	270	350	70	26	32	9	12.2	M24	M16	128	154	25	23028K	H3028	SR210x10	1	SSN3028
SN3030	SSN3030	135	225	445	130	50	66	150	175	283	380	70	28	36	9	12.22	M24	M20	138	164	30	23030K	H3030	SR225x10	1	SSN3030
SN3032	SSN3032	140	240	460	130	40	70	150	190	300	390	70	28	38	10	13.7	M24	M20	143	173	37	23032K	H3032	SR240x10	1	SSN3032
SN3034	SSN3034	150	260	540	160	50	77	160	205	325	450	90	33	42	10	13.7	M30	M20	153	183	47	23034K	H3034	SR260x10	1	SSN3034
SN3036	SSN3036	160	280	550	160	50	84	170	215	345	470	90	33	42	10	13.7	M30	M20	163	193	55	23036K	H3036	SR280x10	1	SSN3036
SN3038	SSN3038	170	290	550	160	60	85	170	235	345	470	90	33	42	10	13.7	M30	M24	173	203	53	23038K	H3038	SR290x10	1	SSN3038
