precision locknut

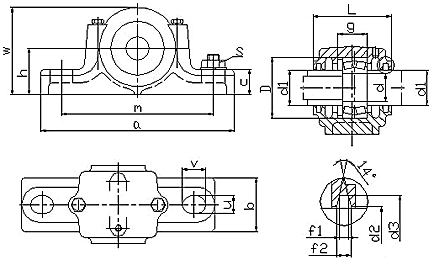

Housing
No.		 Shaft dia
(mm)		 Dimensions(mm) Housing
Wt
(kg)		 Bearing No. Locating Ring
d d1 D
H8		 a b c g
H12		 h
h12		 L W m u v f1
H12		 f2 d2
H12		 d3
H12		 Number QTY
SN305 25 30 62 185 52 22 34 50 80 90 150 15 20 31.5 43 4 5.4 1.6 1305
2305		   SR62x8.5
SR62x10		 2
1
SN306 30 35 72 185 52 22 37 50 82 95 150 15 20 36.5 48 4 5.4 1.9 1306
2306		   SR72x9
SR72x10		 2
1
SN307 35 45 80 205 60 25 41 60 90 110 170 15 20 46.5 58 4 5.4 2.6 1307
2307		   SR80x10
SR80x10		 2
1
SN308 40 50 90 205 60 25 43 60 95 115 170 15 20 51.5 67 5 6.9 3.2 1308
2308		 21308
22308		 SR90x10
SR90x10		 2
1
SN309 45 55 100 255 70 28 46 70 105 130 210 18 23 56.5 72 5 6.9 4.5 1309
2309		 21309
22309		 SR100x10.5
SR100x10		 2
1
SN310 50 60 110 255 70 30 50 70 115 135 210 18 23 62 77 5 6.8 5.0 1310
2310		 21310
22310		 SR110x11.5
SR110x10		 2
1
SN311 55 65 120 275 80 30 53 80 120 150 230 18 23 67 82 5 6.8 6.6 1311
2311		 21311
22311		 SR120x12
SR120x10		 2
1
SN312 60 70 130 280 80 30 56 80 125 155 230 18 23 72 89 6 8.1 7.0 1312
2312		 21312
22312		 SR130x12.5
SR130x10		 2
1
SN313 65 75 140 315 90 32 58 95 130 175 260 22 27 77 94 6 8.1 8.8 1313
2313		 21313
22313		 SR140x12.5
SR140x10		 2
1
SN314 70 80 150 320 90 32 61 95 130 185 260 22 27 82 99 6 8.1 10.3 1314
2314		 21314
22314		 SR150x13
SR150x10		 2
1
SN315 75 85 160 345 100 35 65 100 140 195 290 22 27 87 104 6 8.1 11.4 1315
2315		 21315
22315		 SR160x14
SR160x10		 2
1
SN316 80 90 170 345 100 35 68 112 145 212 290 22 27 92 111 7 9.3 13.0 1316
2316		 21316
22316		 SR170x14.5
SR170x10		 2
1
SN317 85 95 180 380 110 40 70 112 155 218 320 26 32 97 116 7 9.3 16.0 1317
2317		 21317
22317		 SR180x14.5
SR180x10		 2
1
SN318 90 100 190 400 110 33 74 112 160 230 320 26 35 102 125 8 10.8 22.8 1318
2318		 21318
22318		 SR190x15.5
SR190x10		 2
1
SN319 95 110 200 420 120 36 77 125 170 245 350 26 35 113 135 8 10.7 27.8 1319
2319		 21319
22319		 SR200x16
SR200x10		 2
1
SN320 100 115 215 420 120 38 83 140 175 280 350 26 35 118 140 8 10.7 34.0 1320
2320		 21320
22320		 SR215x18
SR215x10		 2
1
SN322 110 125 240 460 130 40 90 150 190 300 390 28 38 128 154 9 12.2 45.0 1322
2322		 21322
22322		 SR240x20
SR240x10		 2
1
SN324 120 135 260 540 160 50 96 160 205 325 450 33 42 138 164 9 12.2 62.0   22324 SR260x10 1
SN326 130 150 280 560 160 50 103 170 215 350 470 33 42 153 183 10 13.7 68.8   22326 SR280x10 1
SN328 140 160 300 630 170 55 112 180 235 375 520 35 45 163 193 10 13.7 98.0   22328 SR300x10 1
SN330 150 170 320 680 180 55 118 190 245 395 560 35 45 173 203 10 13.7 116.0   22330 SR320x10 1
SN332 160 180 340 710 190 60 124 200 255 415 580 42 52 183 213 10 13.7 135.0   22332 SR340x10 1
