locknuts

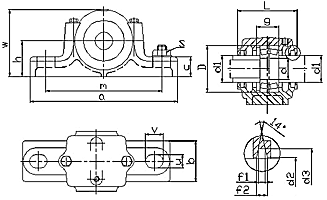

Housing
No.		 Shaft dia
(mm)		 Dimensions(mm) Housing
Wt (kg)		 Bearing No. Locating Ring Housing No.
d d1 D
H8		 a b c g
H12		 h
h12		 L W m u v f1
H12		 f2 d2
H12		 d3
H12		 Number QTY
SN205 25 30 52 165 46 22 25 40 67 75 130 15 20 4 5.4 31.5 43 1.4 1205
2205		 22205 SR52x5
SR52x7		 2
1		 SN205
SN206 30 35 62 185 52 22 30 50 77 90 150 15 20 4 5.4 36.5 48 1.9 1206
2206		 22206 SR62x7
SR62x10		 2
1		 SN206
SN207 35 45 72 185 52 22 33 50 82 95 150 15 20 4 5.4 46.5 58 2.0 1207
2207		 22207 SR72x8
SR72x10		 2
1		 SN207
SN208 40 50 80 205 60 25 33 60 85 110 170 15 20 5 6.9 51.5 67 3.0 1208
2208		 22208 SR80x7.5
SR80x10		 2
1		 SN208
SN209 45 55 85 205 60 25 31 60 85 112 170 15 20 5 6.9 56.5 72 3.2 1209
2209		 22209 SR85x6
SR85x8		 2
1		 SN209
SN210 50 60 90 205 60 25 33 60 90 115 170 15 20 5 6.8 62 77 3.4 1210
2210		 22210 SR90x6.5
SR90x10		 2
1		 SN210
SN211 55 65 100 255 70 28 33 70 95 130 210 18 23 5 6.8 67 82 4.5 1211
2211		 22211 SR100x6
SR100x8		 2
1		 SN211
SN212 60 70 110 255 70 30 38 70 105 135 210 18 23 6 8.1 72 89 5.0 1212
2212		 22212 SR110x8
SR110x10		 2
1		 SN212
SN213 65 75 120 275 80 30 43 80 110 150 230 18 23 6 8.1 77 94 5.4 1213
2213		 22213 SR120x10
SR120x12		 2
1		 SN213
SN214 70 80 125 275 80 30 44 80 115 155 230 18 23 6 8.1 82 99 6.1 1214
2214		 22214 SR125x10
SR125x13		 2
1		 SN214
SN215 75 85 130 280 80 30 41 80 115 155 230 18 23 6 8.1 87 104 7.4 1215
2215		 22215 SR130x8
SR130x10		 2
1		 SN215
SN216 80 90 140 315 90 32 43 95 120 175 260 22 27 7 9.3 92 111 9.5 1216
2216		 22216 SR140x8.5
SR140x10		 2
1		 SN216
SN217 85 95 150 320 90 32 46 95 125 185 260 22 27 7 9.3 97 116 10.0 1217
2217		 22217 SR150x9
SR150x10		 2
1		 SN217
SN218 90 100 160 345 100 35 62.4 100 145 195 290 22 27 8 10.8 102 125 12.8 1218
2218		 22218
23218		 SR160x16.2
SR160x11.2
SR160x10		 2
2
1		 SN218
SN219 95 110 170 345 100 35 53 112 140 210 290 22 27 8 10.7 113 135 17.8 1219
2219
22219		 SR170x10.5
SR170x10		 2
1		 SN219
SN220 100 115 180 380 110 40 70.3 112 160 218 320 26 32 8 10.7 118 140 19.0 1220
2220
 22220
23220		 SR180x18.1
SR180x12.1
SR180x10		 2
2
1		 SN220
SN222 110 125 200 410 120 45 80 125 175 240 350 26 32 9 12.2 128 154 23 1222
2222
 22222
23222		 SR200x21
SR200x13.5
SR200x10		 2
2
1		 SN222
SN224 120 135 215 410 120 45 86 140 185 270 350 26 32 9 12.2 138 164 25   22224
23224		 SR215x14
SR215x10		 2
1		 SN224
SN226 130 145 230 445 130 50 90 150 190 290 380 28 36 10 13.7 148 178 28   22226
23226		 SR230x13
SR230x10		 2
1		 SN226
SN228 140 155 250 500 150 50 98 150 205 305 420 33 42 10 13.7 158 188 36   22228
23228		 SR250x15
SR250x10		 2
1		 SN228
SN230 150 165 270 530 160 60 106 160 220 325 450 33 42 10 13.7 168 198 45.5   22230
23230		 SR270x16.5
SR270x10		 2
1		 SN230
SN232 160 175 290 550 160 60 114 170 235 345 470 33 42 10 13.7 178 208 56.5   22232
23232		 SR290x17
SR290x10		 2
1		 SN232
