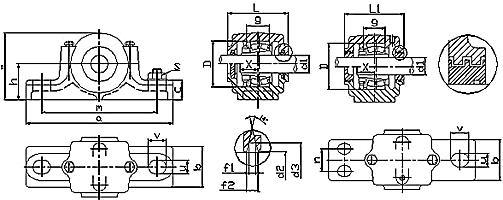

Housing No. Shaft dia
d1(mm)
Dimensions(mm) Housing
Wt
(kg)
Bearing No. Adapter
Sleeve
Locating Ring Housing
No.
D
H8
a b c g
H12
h
h12
L W m n u v s d2
H12
d3
H12
f1
H13
f2 Number QTY
SD534 150 310 620 230 60 106 180 270 360 510 140 36 52 M30 153 183 10 13.8 92 22234K H3134 SR310x10 2 SD534
SD536 160 320 650 240 60 106 190 280 380 540 150 36 52 M30 163 193 10 13.8 105 22236K H3136 SR320x10 2 SD536
SD538 170 340 700 260 65 112 200 290 400 570 160 36 55 M30 173 203 10 13.8 125 22238K H3138 SR340x10 2 SD538
SD540 180 360 740 270 65 118 210 300 420 610 170 36 55 M30 183 213 10 13.8 140 22240K H3140 SR360x10 2 SD540
SD544 200 400 820 300 70 128 240 330 475 680 190 43 62 M36 203 240 11 15.7 200 22244K H3144 SR400x10 2 SD544
SD548 220 440 880 310 85 140 260 340 515 740 200 43 62 M36 223 260 11 15.7 230 22248K H3148 SR440x10 2 SD548
SD552 240 480 940 340 85 150 280 370 560 790 210 43 62 M36 243 286 12 17.4 300 22252K H3152 SR480x10 2 SD552
SD556 260 500 990 370 100 150 300 390 590 830 230 50 70 M42 263 306 12 17.4 350 22256K H3156 SR500x10 2 SD556
SD560 280 540 1060 390 100 160 325 410 640 890 250 50 70 M42 283 332 13 19.1 450 22260K H3160 SR540x10 2 SD560
SD564 300 580 1110 420 110 170 355 440 690 930 270 58 77 M48 303 352 13 19.1 550 22264K H3164 SR580x10 2 SD564
