Ningbo SUP bearing Co.,Ltd.

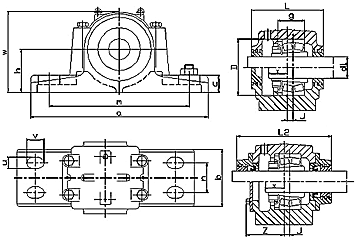

Housing No.	Shaft dia d1(mm)	Dimensions(mm)															Housing Wt (kg)	Bearing No.	Adapter Sleeve		Locating Ring
Housing No.	Shaft dia d1(mm)	D H8	a	b	c	g H12	h h12	L	L2	W	m	n	J	X	Z	S	Housing Wt (kg)	Bearing No.	Adapter Sleeve		Number	QTY
SD3134	150	280	510	180	70	108	170	230	308	335	430	100	14	65	120	M24	70	23134K	H3134	HE3134	SR280x10	2
SD3136	160	300	530	190	75	116	180	240	318	355	450	110	15	68	130	M24	79	23136K	H3136	HE3136	SR300x10	2
SD3138	170	320	560	210	80	124	190	260	336	375	480	120	10	80	140	M24	100	23138K	H3138	HE3138	SR320x10	2
SD3140	180	340	610	230	85	132	210	280	356	410	510	130	10	82	150	M30	130	23140K	H3140	HE3140	SR340x10	2
SD3144	200	370	640	240	90	140	220	290	368	435	540	140	12	90	155	M30	146	23144K	H3144		SR370x10	2
SD3148	220	400	700	260	95	148	240	310	388	475	600	150	12	100	160	M30	190	23148K	H3148		SR400x10	2
SD3152	240	440	770	280	100	164	260	320	400	515	650	160	13	105	170	M36	230	23152K	H3152		SR440x10	2
SD3156	260	460	790	280	105	166	280	320	400	550	670	160	16	105	170	M36	260	23156K	H3156		SR460x10	2
SD3160	280	500	830	310	110	180	300	350	426	590	710	190	22	110	190	M36	320	23160K	H3160		SR500x10	2
SD3164	300	540	880	330	115	196	320	370	448	630	750	200	23	120	200	M36	350	23164K	H3164		SR540x10	2
SD3168	320	580	965	380	120	210	340	390	488	670	840	240	25	135	220	M45	550	23168K	H3168		SR580x10	2
SD3172	340	600	1040	390	130	212	360	390	498	720	890	255	22	145	225	M50	560	23172K	H3172		SR600x10	2
SD3176	360	620	1120	400	135	214	380	405	520	750	980	255	22	145	240	M55	780	23176K	H3176		SR620x10	2
SD3180	380	650	1245	420	140	220	400	405	552	790	1050	270	22	150	260	M60	885	23180K	H3180		SR650x10	2
