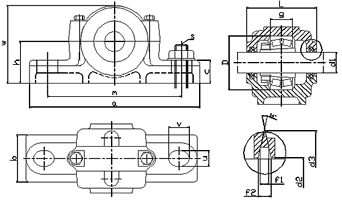

Housing No.	Shaft	Dimensions mm														Weight (kg)	Bearing No.		Adapter Sleeve
Housing No.	d1	a	m	h h12	c	L	b	D h8	g h12	f1 H12	f2	d2 h12	d3 h12	v	u	Weight (kg)	Bearing No.		Adapter Sleeve
1504	17	128	98	31	14	50	34	47	18	2.5	3.2	18.5	28	16	12	0.67	1204K	2204K	H204	H304
1505	20	134	104	34	15	57	37	52	18	2.5	3.5	21.5	31	16	12	0.78	1205K	2205K	H205	H305
1506	25	150	118	39	15	60	40	62	20	2.8	3.5	26.5	38	18	12	1	1206K	2206K	H206	H306
1507	30	177	140	45	17	69	44	72	23	3.2	4	31.5	43	20	14	1.6	1207K	2207K	H207	H307
1508	35	190	150	48	18	75	53	80	23	3.2	4	36.5	48	22	14	1.95	1208K	2208K	H208	H308
1509	40	195	157	52	19	77	53	85	23	3.5	4	41.5	53	22	14	2.2	1209K	2209K	H209	H309
1510	45	206	165	54	21	83	56	90	23	3.5	4	46.5	58	22	14	2.8	1210K	2210K	H210	H310
1511	50	229	183	62	22	90	67	100	25	3.5	4	51.5	67	25	18	3.7	1211K	2211K	H211	H311
1512	55	249	205	69	22	92	69	110	28	3.5	4	56.5	72	25	18	4.8	1212K	2212K	H212	H312
1513	60	266	217	73	26	94	73	120	31	4.5	5	62	77	25	18	5.5	1213K	2213K	H213	H313
1515	65	280	225	78	26	95	75	130	31	4.5	5	67	82	26	18	6	1215K	2215K	H215	H315
1516	70	300	240	86	26	110	78	140	33	5	6	72	89	28	18	8.2	1216K	2216K	H216	H316
1517	75	320	260	92	28	125	88	150	36	6	6.5	77	94	30	18	10	1217K	2217K	H217	H317
1518	80	360	290	100	30	130	90	160	40	6	6.5	82	99	40	22	13	1218K	2218K	H218	H318
